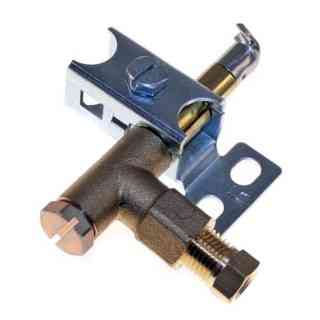

pilot burner one flame with nozzle bracket 0.20 bic. d6

Single-flame pilot burner with mounting bracket, a spare part for professional gas cooking appliances (fryers, ranges and griddles). Code AGWS4.003.002.

The assembly includes:

• single-flame pilot body with an integrated bracket for quick, stable mounting;
• 0.20 nozzle (injector);
• bicone fitting for a Ø6 mm gas pipe ('racc. bic. D6').

The pilot flame keeps a permanent ignition source that lights the main burner and holds the safety thermocouple bulb up to temperature: if the flame goes out, the thermocouple shuts off the gas supply. The Ø6 bicone fitting provides a leak-tight connection to the supply pipe.

Technical note: the nozzle size (0.20) must be selected according to the type of gas used, since the pilot flame's flow rate and output depend on the supply gas.

Safety note: this is a component for gas systems. Installation and replacement must be carried out only by a qualified gas technician, on a compliant system, with a leak test on completion of the work.
