GEAR

The slicer's gear transmits motion from the motor to the blade: as with the meat grinder, fibre and nylon materials are chosen to be weaker than steel and break first in case of overload or jamming, protecting the motor; bronze gears are more durable but lack this protective function.

How to choose the right part: count the teeth (code Z, e.g. Z25, Z30, Z31) and check the diameter and centre hole. Some models have a toothed sector (a partial gear, not a full ring) instead of a full gear. Shock absorbers (inserts that cushion the impact on engagement, e.g. with a 6mm shock absorber) are an extra protection found only on some models.

Compatibility by brand: available for Atoma, Bizerba, Berkel, FIA Boston and Arsa — even with the same number of teeth, gears from different brands are often not interchangeable because of different hole size and mounting seat.

For meat grinder or mixer gears see Gears for Meat Grinder or Gear for Mixer.

Frequently asked questions

Why choose fibre/nylon over bronze?
Fibre and nylon break first in case of overload, protecting the motor; bronze lasts longer but in case of a jam the overload transfers to the motor.

What is a toothed sector?
It's a partial gear (not a full ring) used on some models instead of a full gear: the two are not interchangeable.

Gear for Slicer

GEAR

Subcategories

Active filters

neutral white oil pack for slicers 50 ml
Price €7.69 Regular price €8.54 -10%

Food-grade neutral white oil, 50 ml, for lubricating gravity-feed and flywheel slicers of any brand: colourless, odourless and tasteless, it protects the carriage, food pusher and blade from friction and rust. Do not use cooking oils.

(4) gear slicer rgv mary silver 220
Price €8.12

Motor transmission gear for the RGV Mary 220 Silver slicer (ref. 110906), in ABS, supplied pre-greased.

  • Large gear ring: diameter 42.5 mm, 40 teeth
  • Small gear ring: diameter 15.5 mm, 10 teeth
  • Height 25 mm, inner bore 6 mm

NOT compatible with the RGV Ausonia model.

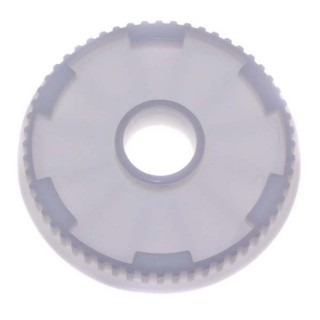

gear ausonia grande 195-220
Price €9.12
Large nylon gear (40 teeth, Ø 43 mm, 6 mm bore) for the motor assembly of RGV Ausonia 190/220 slicers, also compatible with Ariete SL 2030 and ALA 322/360/361/380/390/394. Transmits motion from the motor to the blade.
(044) ausonia engine gear 190/220
Price €12.20

Motor transmission gear (code 044) for RGV Ausonia 190/220, Q228 and Smarty 170 slicers. Double gear 10+40 teeth: ring gear Ø 42.5 mm / 40 teeth, pinion Ø 15.5 mm / 10 teeth, height 32 mm. Wear part: replace if the motor runs but the blade does not turn.
