Bestsellers
- -10%
blade for slicer 250 diameter 25cm three hole central hole 40mm c45 rgv fac e
"
BLADE FOR SLICER 250 DIAMETER 25CM THREE HOLE CENTRAL HOLE 40MM C45 RGV FAC E
| (E) Diameter Blade | 250 | |
| (V) Number of holes | 3 | |
| (F) Dim. Central hole | 40 | |
| (H) Blade height (thickness) | 17.5 | |
| (I) Inner blade measurement (blade guard) | 210 |
VISIT THE BLOG FOR MORE INFORMATION
"
- -10%
neutral white oil pack for slicers 50 ml
Food-grade neutral white oil, 50 ml, for lubricating gravity-feed and flywheel slicers of any brand: colourless, odourless and tasteless, it protects the carriage, food pusher and blade from friction and rust. Do not use cooking oils.
- -10%
blade for slicer 220 diameter 22cm three hole central hole 40mm c45 rgv and other brands
BLADE FOR SLICER? 220/40/3/180 / 15,5 C45 FOR ABO - KOLOSSAL - OMAS -VAN DALL
(E) Diameter Blade 220
(V) Hole Number 3
(F) Dim. Central Hole 40
(H) Blade height (thickness) 15.5
(I) Internal blade size (cap) 180
VISIT THE BLOG FOR MORE INFORMATION
hand protection slicer fac and swedlinghaus model 195 220 250r 250e
Carriage hand guard for FAC and Swedlinghaus gravity-feed slicers, models 195 / 220 / 250R / 250E, CE and CE domestic versions. Safety shield between the hand and the blade during slicing: mandatory component, to be replaced if broken or missing. Hole centre distance 14.9 cm (measurement to check for compatibility). Specific to FAC/Swedlinghaus, not interchangeable with RGV models.

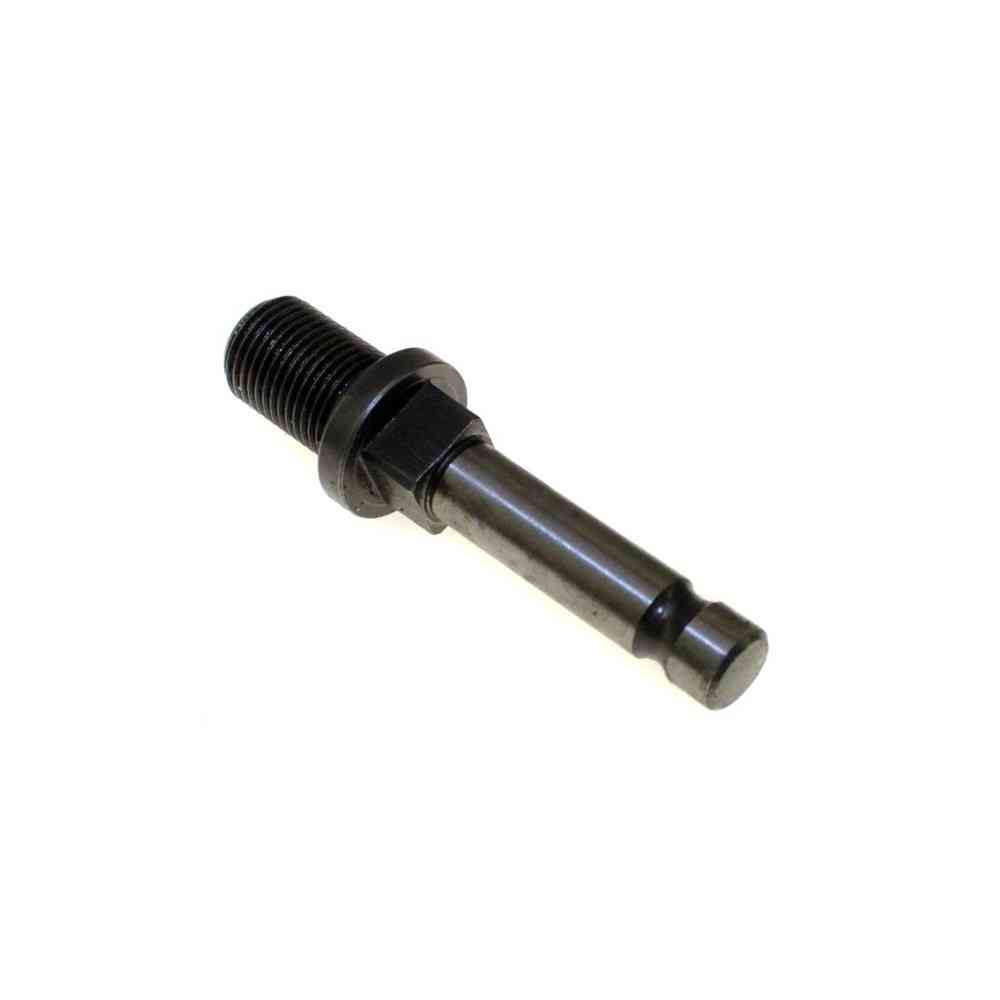

abo-pin knife mod.12
ABO brand knife-holder pin for size 12 meat mincers (ref. ABOTRI0001). Secures and adjusts the cross-blade knife against the perforated plate in the mincing assembly.
- Thread Ø 14
- Pitch 1.25
- Flange Ø 20 mm
- Flange thickness 4
ABO brand knife-holder pin for size 12 meat mincers (code ABOTRI0001). The threaded pin screws into the mincing assembly and holds the cross-blade knife in position against the perforated plate: its flange acts as a stop and seat for the knife, while the threaded section allows the correct clamping to be set. A precise fit between pin, knife and plate is essential for a clean cut and to avoid overheating, mushy mince and excess friction.
Replace it when the thread is stripped or worn, when the pin is bent or has play, or when the stop flange is damaged: in all these cases the knife no longer seats correctly against the plate, causing poor cutting and increased wear of the components.
Technical specifications (ABO mod. 12 fit):
- Thread Ø 14
- Pitch 1.25
- Flange Ø 20 mm
- Flange thickness 4
Specific References
- MPN
- AGWS-1016
ABO brand knife-holder pin for size 12 meat mincers (ref. ABOTRI0001). Secures and adjusts the cross-blade knife against the perforated plate in the mincing assembly.
- Thread Ø 14
- Pitch 1.25
- Flange Ø 20 mm
- Flange thickness 4
