blade for slicer 250 diameter 25cm three hole central hole 40mm c45 rgv fac e
"
BLADE FOR SLICER 250 DIAMETER 25CM THREE HOLE CENTRAL HOLE 40MM C45 RGV FAC E
| (E) Diameter Blade | 250 | |
| (V) Number of holes | 3 | |
| (F) Dim. Central hole | 40 | |
| (H) Blade height (thickness) | 17.5 | |
| (I) Inner blade measurement (blade guard) | 210 |
VISIT THE BLOG FOR MORE INFORMATION
"
- -10%
neutral white oil pack for slicers 50 ml
Food-grade neutral white oil, 50 ml, for lubricating gravity-feed and flywheel slicers of any brand: colourless, odourless and tasteless, it protects the carriage, food pusher and blade from friction and rust. Do not use cooking oils.
- -10%
blade for slicer 220 diameter 22cm three hole central hole 40mm c45 rgv and other brands
BLADE FOR SLICER? 220/40/3/180 / 15,5 C45 FOR ABO - KOLOSSAL - OMAS -VAN DALL
(E) Diameter Blade 220
(V) Hole Number 3
(F) Dim. Central Hole 40
(H) Blade height (thickness) 15.5
(I) Internal blade size (cap) 180
VISIT THE BLOG FOR MORE INFORMATION
hand protection slicer fac and swedlinghaus model 195 220 250r 250e
Carriage hand guard for FAC and Swedlinghaus gravity-feed slicers, models 195 / 220 / 250R / 250E, CE and CE domestic versions. Safety shield between the hand and the blade during slicing: mandatory component, to be replaced if broken or missing. Hole centre distance 14.9 cm (measurement to check for compatibility). Specific to FAC/Swedlinghaus, not interchangeable with RGV models.

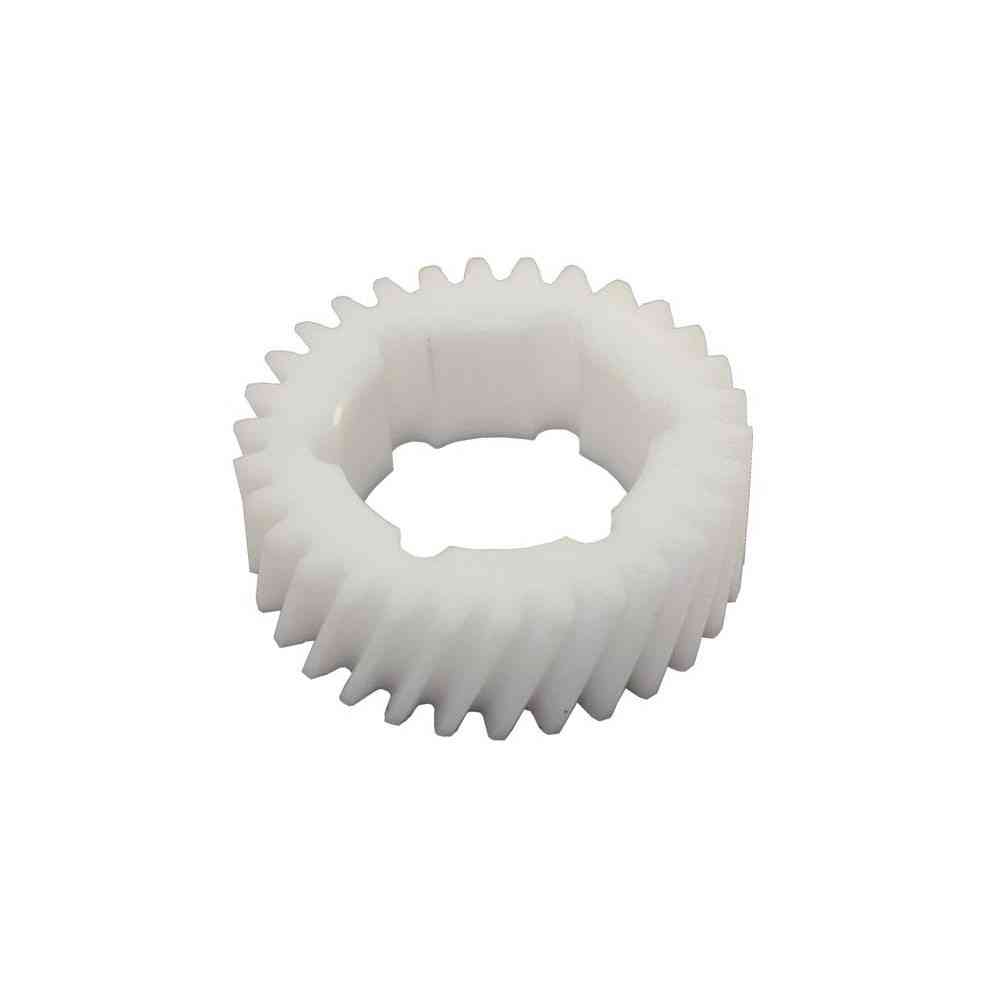

z30 gear c / 6mm flexible coupling
Z30 gear (30 teeth) with seats for 6 mm shock-absorber pins for professional meat slicers. It transfers motion from the motor to the blade hub; the rubber pins absorb jolts and vibrations, protecting the drive train. Replace it when the teeth are worn or the blade turns in jerks. Ref. ATOAFF0168.
Z30 gear with seats for 6 mm shock-absorber pins, spare part for professional meat slicers (ref. ATOAFF0168).
This 30-tooth gear is part of the blade-hub drive train: it receives motion from the motor and transfers it to the blade. The recesses in the gear body house the 6 mm diameter rubber shock-absorber pins (parastrappi), which dampen jolts and vibrations at start-up, protecting the teeth and the gearmotor from torque shocks.
- Number of teeth: Z30
- Shock-absorber pin seats: 6 mm diameter
- Use: slicer blade-hub drive transmission
When to replace it: worn, chipped or rounded teeth, grinding or rasping noise during operation, blade turning in jerks, slowing under load or no longer turning although the motor runs. When replacing the gear it is good practice to fit new shock-absorber pins as well, since hardened or crushed rubber pins accelerate the wear of the freshly installed part.
Specific References
- MPN
- AGWS-2195
Z30 gear (30 teeth) with seats for 6 mm shock-absorber pins for professional meat slicers. It transfers motion from the motor to the blade hub; the rubber pins absorb jolts and vibrations, protecting the drive train. Replace it when the teeth are worn or the blade turns in jerks. Ref. ATOAFF0168.
