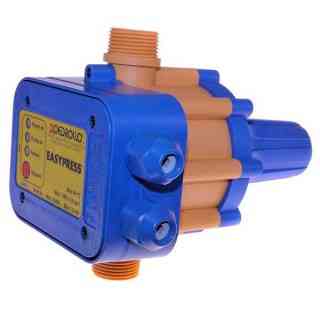

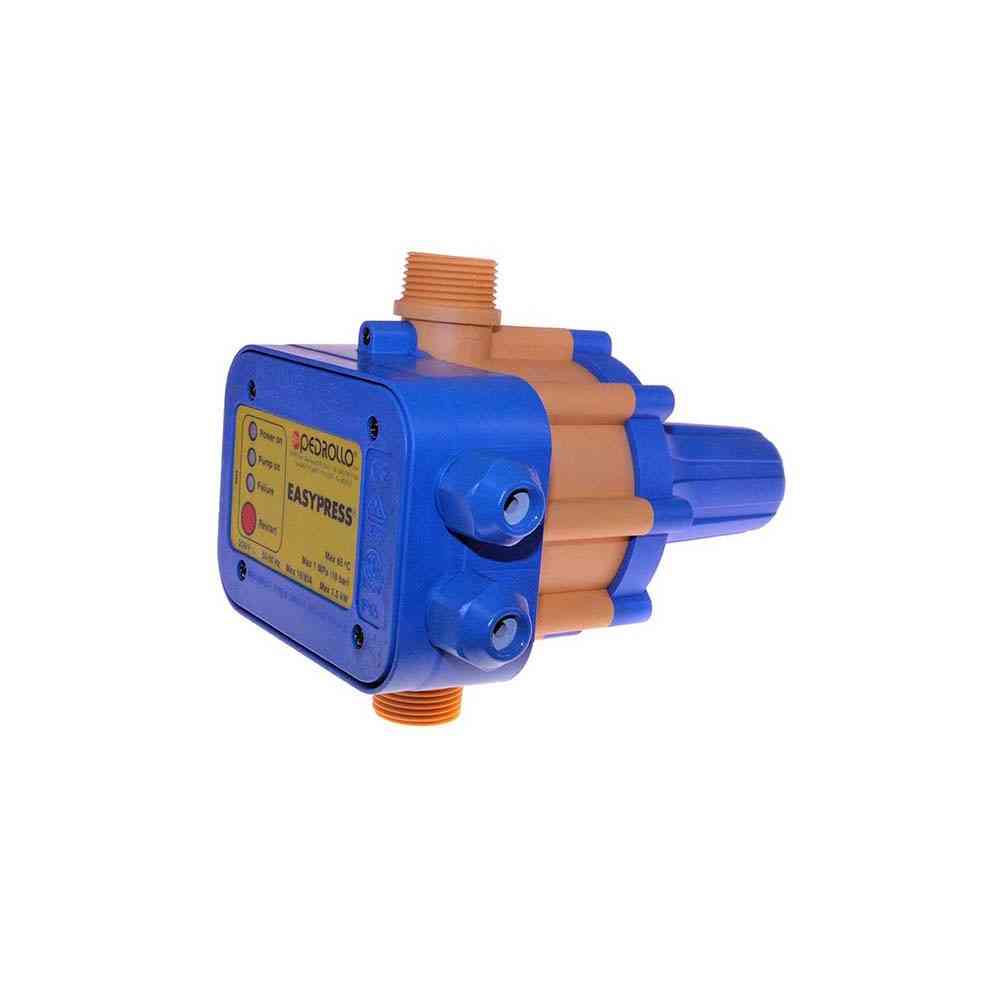

"""EASYPRESS"" ELECTRONIC PRESSURE INCREASE DEVICE"
  • """EASYPRESS"" ELECTRONIC PRESSURE INCREASE DEVICE"

"""easypress"" electronic device for pressure increase"

€120.22
Tax included
"EASYPRESS" electronic device for boosting and automatically controlling water pressure via a single-phase pump (up to 2 HP), 230V 50/60Hz, with dry-run protection. Ref. 1.014.046.
Quantity

The "EASYPRESS" electronic device is a pressure/flow control unit that automatically starts and stops a single-phase water pump based on pressure and flow, boosting and keeping the pressure required by the system constant. It is designed for single-phase pumps up to 2 HP, with built-in protection against dry running and against overly frequent starts caused by small leaks in the circuit.

  • Power supply: 230V single-phase, 50/60 Hz
  • Restart pressure: 1.5 bar (standard)
  • Maximum pressure: 10 bar
  • Protection rating: IP65
  • Liquid temperature: up to +55°C
  • Protection against dry running and frequent starts

Fitted on a washing or dishwashing system, it keeps the incoming water pressure constant by starting the booster pump only when needed. Replace it when the device no longer starts the pump, water pressure becomes unstable, or the electronic part is faulty.

1.014.046
11 Items

Specific References

MPN
AGWS-2106
