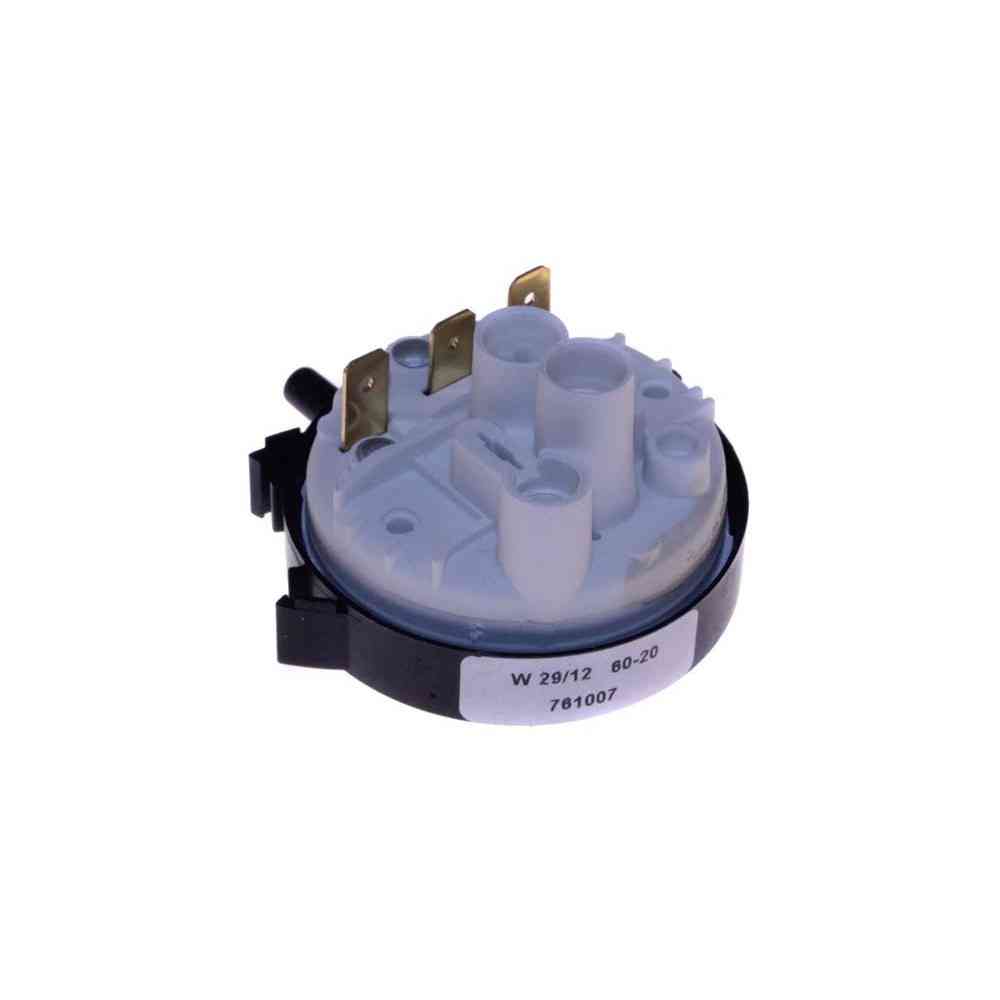

PRESSURE SWITCH SIDE CONNECTION 60-20 220V FOR DISHWASHER
  • PRESSURE SWITCH SIDE CONNECTION 60-20 220V FOR DISHWASHER

side connection pressure switch 60-20 220v for dishwashers

€30.22
Tax included

Side-connection pressure switch, 60-20 calibration, 220V power supply, for professional dishwashers. Regulates water intake by sensing tub pressure.

Quantity

Pressure switch for professional dishwashers with side connection and 60-20 calibration, 220V power supply.

The pressure switch is the component that detects air pressure inside the tub to regulate water intake during the wash cycle: when the level reaches the upper calibrated threshold (60), the sensor triggers closure of the water inlet solenoid valve; as the tub empties, the lower threshold (20) signals the reset. It features a pressure-sensitive membrane and a side connection for linking to the machine's pneumatic circuit.

It should be replaced when the dishwasher stops filling with water, when dishes come out dirty at the end of the cycle due to insufficient water intake, or when the control board signals a level fault.

AGWS1.013.010
99 Items

Specific References

MPN
AGWS-2692
